More storage capacity with asymmetrical racks

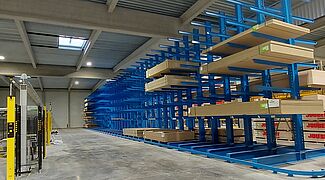

The building materials trading group Derrey has equipped its new subsidiary “Gedibois Derrey” in Metz with OHRA cantilever racks. Thanks to customised special solutions, the racks adapt exactly to the product range and the structural conditions. In addition to standard cantilever racks, asymmetrical racks are also used: These are double-sided racks in which the cantilevers on the left and right sides differ in load-bearing capacity and length. In this way, the wide variety of different types of timber and panels can be stored efficiently and in a space-saving manner. In addition, some of the racks are located in an open hall, so that the first uprights of a row of racks could still be exposed to the weather. For this reason, OHRA has hot-dip galvanised the front uprights of the racks, while the remaining components have been powder-coated at a lower cost.
2,500 items in an area 7,000 square metres
The new Gedibois Derrey subsidiary offers commercial and private customers a comprehensive range of timber products, from construction timber to facade cladding and floor coverings. The new building includes a modern, 1,000-square-metre showroom and a storage area of around 7,000 square metres. Gedibois Derrey always has around 2,500 items in stock. The warehouse is located both in a closed warehouse and in a partially open building, which includes a drive-in area for customers.
Tailor-made racks
The uprights of all the racks are almost 7 metres high and the length of the rows of racks varies between 22.8 and 38 metres. While the standard racks used have a uniform cantilever length of 1,200 millimetres and load-bearing capacities of 730 or 800 kilograms per cantilever, OHRA has designed two racks asymmetrically: The first rack has cantilevers that are 1,500 millimetres long on one side and 1,850 millimetres on the other. Accordingly, the upright was not mounted in the centre of the rack base. The load-bearing capacity on both sides is 700 kilograms per cantilever. For the second rack the load-bearing capacities of the cantilevers also differ on the respective sides. While they can bear 700 kilograms on one side with a cantilever length of 1,850 millimetres, the load-bearing capacity on the other rack side is 800 kilograms with a cantilever length of 1,200 millimetres. This has made it possible to create rack solutions that are precisely tailored to the goods being stored and ensure a high storage capacity with efficient use of the storage area.
Warehouse open on one side – a special case
The installation of two racks in the drive-in area of a warehouse that is open on one side was included in the construction by OHRA: On the one hand, the racks were calculated considering appropriate wind loads. On the other hand, the front sides of the racks facing the open side were additionally protected against the effects of the weather by galvanising the first two uprights. This ensures the durability of the racking system even if the supporting structure is exposed to precipitation.
About Derrey:
Derrey has been present in the ‘“Grand Est’” region in north-west France since 1920. The company originally produced concrete products, but over the course of its history it has continued to diversify and is now one of the market leaders for building materials in the Alsace-Lorraine region. As a member of Gedibois, an association of independent traders in timber and timber construction products, Gedibois Derrey offers its customers a wide selection of stock items at affordable prices, as well as additional services to support them in their timber construction projects. Gedibois Derrey specialises in timber products for interior and exterior furnishings, interior construction and timber construction.
